LMR-400 Coaxial Cable: The Gold Standard for Long-Haul RF Feeder Lines

In wireless infrastructure, distance is the enemy of signal integrity. When cable runs exceed 15 meters at microwave frequencies, standard mid-size cables like LMR-240 begin to introduce unacceptable attenuation. For decades, engineers were forced to choose between lossy RG-8/RG-213 or expensive, difficult-to-install semi-rigid lines. LMR-400 changed that equation entirely. As the industry’s most widely adopted long-haul flexible feeder, it delivers ultra-low loss, exceptional power handling, and field-friendly flexibility in a single, cost-effective package.

What Is LMR-400?

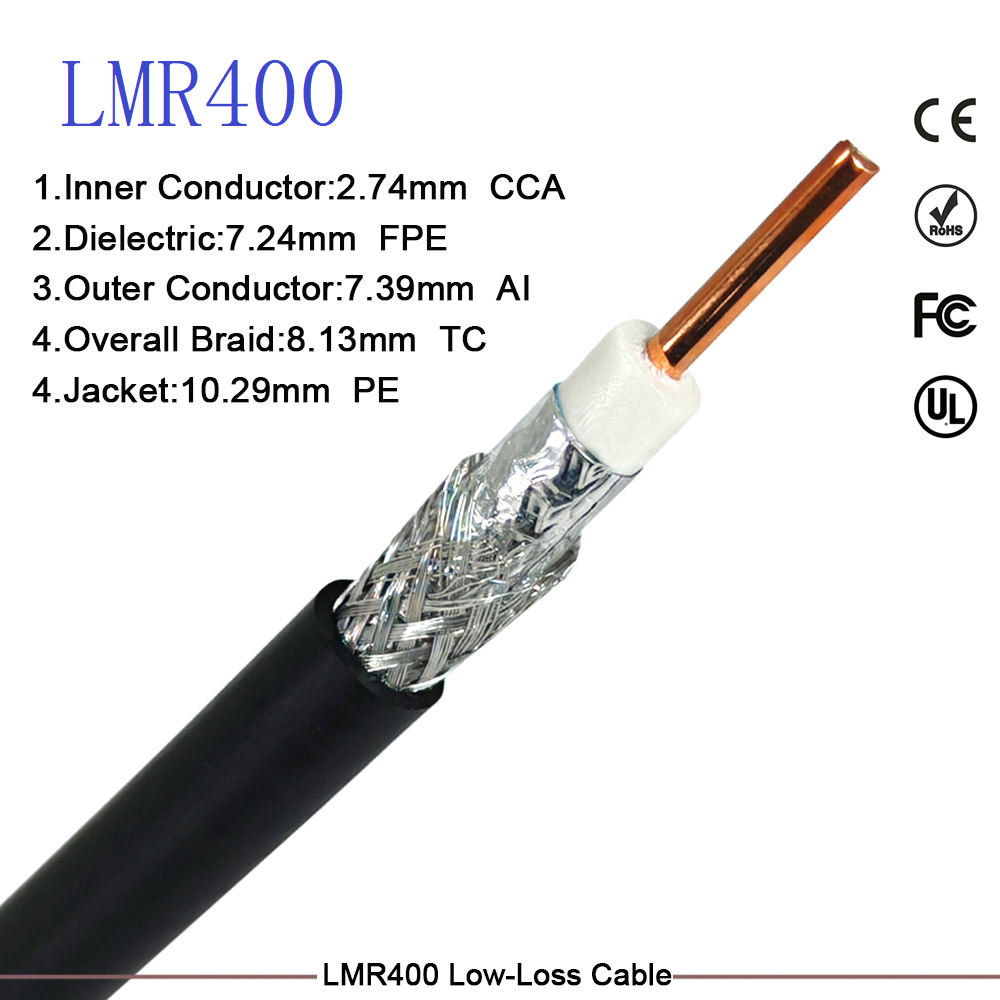

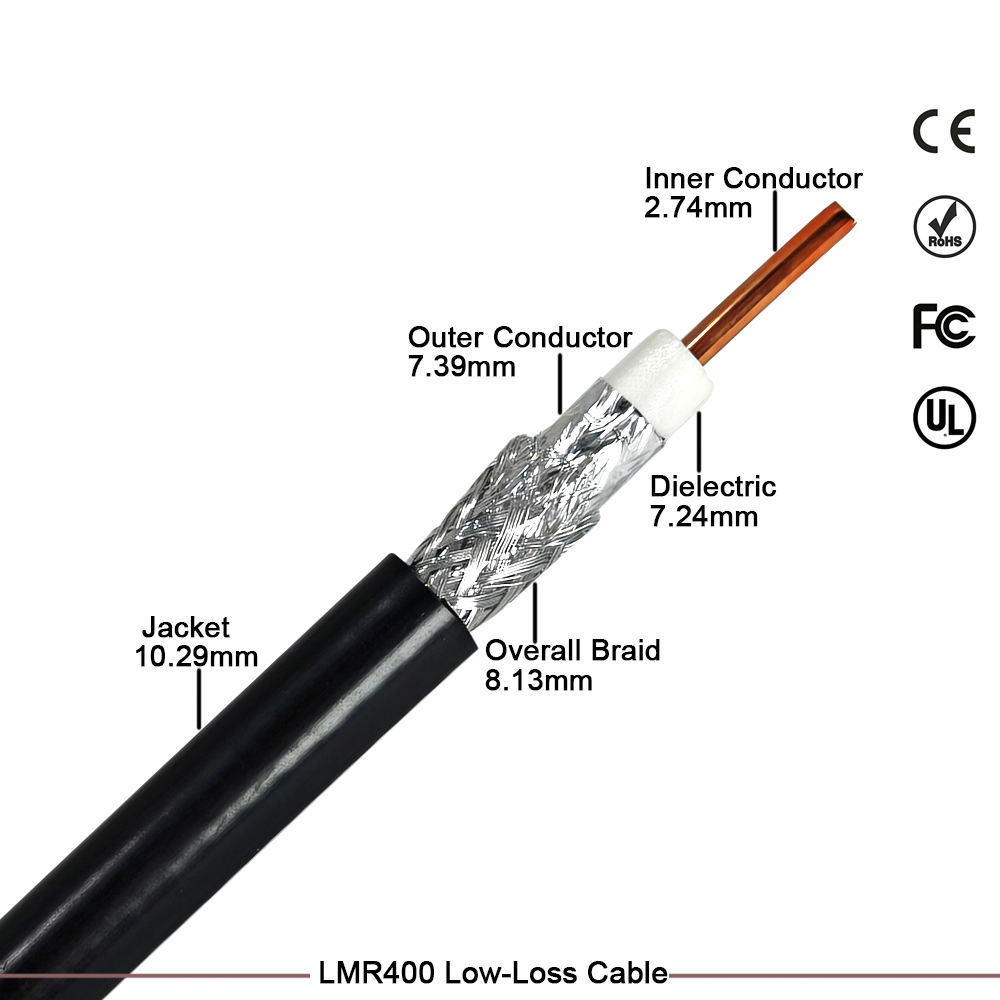

LMR-400 is a 50-ohm, ultra-low-loss flexible coaxial cable with an outer diameter of 0.405 inches (10.3 mm). Developed by Times Microwave Systems (now Amphenol), it features a large-diameter solid bare copper-clad aluminum (BCC) center conductor, high-performance foam PE dielectric, and bonded dual shielding. It was specifically engineered to replace RG-8, RG-213, and other legacy 0.4"-class cables while offering dramatically superior electrical performance.

Key Technical Advantages

1. Ultra-Low Attenuation for Extended Runs

At 2.4 GHz, LMR-400 exhibits approximately 41% lower loss than LMR-240 and ~80% lower loss than RG-213. This enables reliable signal transmission over 30–50 meter runs at Wi-Fi and cellular frequencies without requiring inline amplifiers or active repeaters.

2. High Power Handling Capacity

With a peak operating voltage of 4,000 Vrms and average power rating exceeding 1,200W at 1 GHz, LMR-400 safely handles high-power transmitter outputs for amateur radio repeaters, broadcast links, and radar systems where thinner cables would overheat or arc.

3. Field-Proven Outdoor Durability

The UV-stabilized black PE jacket is rated for direct burial, aerial lashing, and continuous outdoor exposure across -40°C to +85°C. Unlike older non-bonded shield designs, LMR-400’s bonded foil prevents moisture migration along the shield interface—a common failure point in legacy RG-8 installations.

4. Flexible Enough for Real-World Installation

Despite its 0.405" OD, LMR-400 maintains a repeated bend radius of just 4 inches (102 mm). This allows routing around tower legs, through conduit bends, and into equipment shelters without the kinking risks associated with semi-rigid or corrugated alternatives.

Quick Specifications at a Glance

Note: Always verify against your supplier’s official datasheet. Genuine Amphenol/Times Microwave LMR-400 specifications may differ from generic equivalents.

Primary Applications

• Cellular Macro Sites & Towers: Main feeder lines for 4G LTE and 5G NR base station antennas (20–50m runs).
• Enterprise & Stadium Wi-Fi: Long-distance AP feeder trunks where distributed antenna systems are impractical.
• Amateur Radio Repeaters & EME: High-power VHF/UHF/SHF station feeds and moonbounce arrays.
• Broadcast & Land Mobile Radio: FM/TV translator links, public safety trunking site interconnects.
• GPS/GNSS Master Distribution: Campus-wide timing distribution from central receiver to remote equipment racks.
• Industrial Radar & Sensing: Long-range detection system antenna feeds in harsh environments.

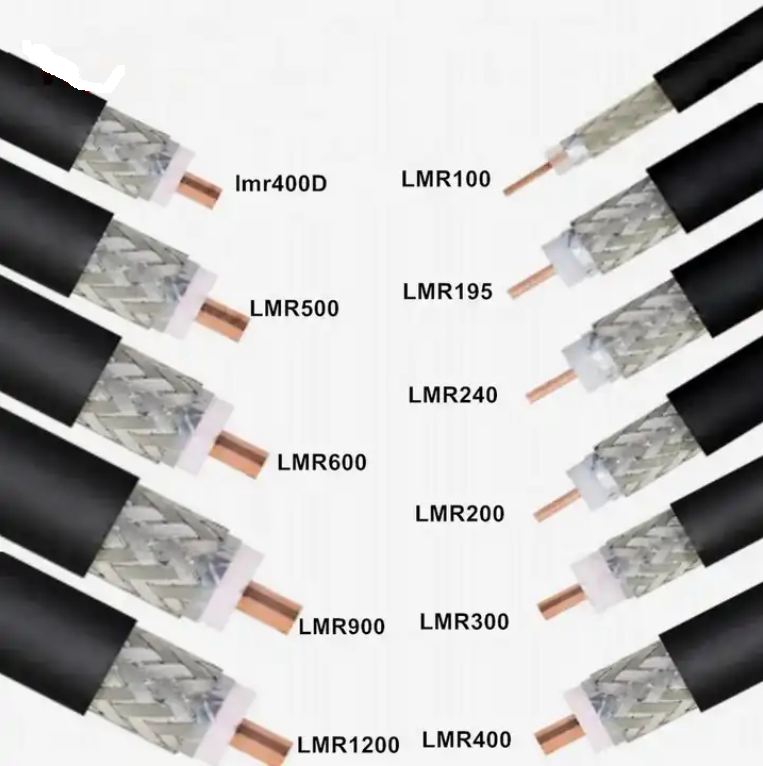

LMR-400 in Context: Complete LMR Family Comparison

Critical Engineering & Installation Notes

• Never Reuse RG-8/RG-213 Connectors: Despite identical outer dimensions, LMR-400 has a larger center conductor (0.108" vs. 0.090" for RG-213) and different dielectric properties. Using legacy connectors will cause catastrophic VSWR, arcing, and potential transmitter damage. Always use LMR-400-specific crimp or clamp connectors.
• Respect Minimum Bend Radius: Exceeding the 4" (102 mm) repeated bend radius compresses the foam dielectric asymmetrically, creating permanent impedance discontinuities. Use pre-formed right-angle assemblies or sweeping bends for tight spaces.
• Grounding & Lightning Protection: For outdoor tower installations, always install surge suppressors at both ends and ground the cable shield per local electrical codes. LMR-400’s bonded shield provides excellent lightning current carrying capacity when properly terminated.
• PIM-Sensitive Deployments: For multi-carrier DAS or 5G sites requiring passive intermodulation performance below -150 dBc, specify Low-PIM LMR-400 variants with silver-plated conductors and precision interfaces. Standard LMR-400 is suitable for single-carrier Wi-Fi, amateur radio, and non-critical links.
• Cable Authentication: Counterfeit LMR-400 is prevalent in the market. Inferior copies often use undersized center conductors, non-bonded shields, and recycled dielectric materials. Source only from authorized distributors or verified equivalent manufacturers (e.g., Pasternack PE-C400, MPD LMR-400-EQ) with full test reports.



Conclusion

LMR-400 remains the benchmark for long-distance flexible RF feeder cables because it solves the fundamental engineering trilemma: low loss, high power, and practical installability. No other cable in its class offers this combination of proven field reliability, broad ecosystem support, and cost efficiency. For any sub-6 GHz installation requiring dependable signal delivery beyond 15 meters, LMR-400 continues to be the default specification for professionals worldwide.
